Distractable Wrist Fixator

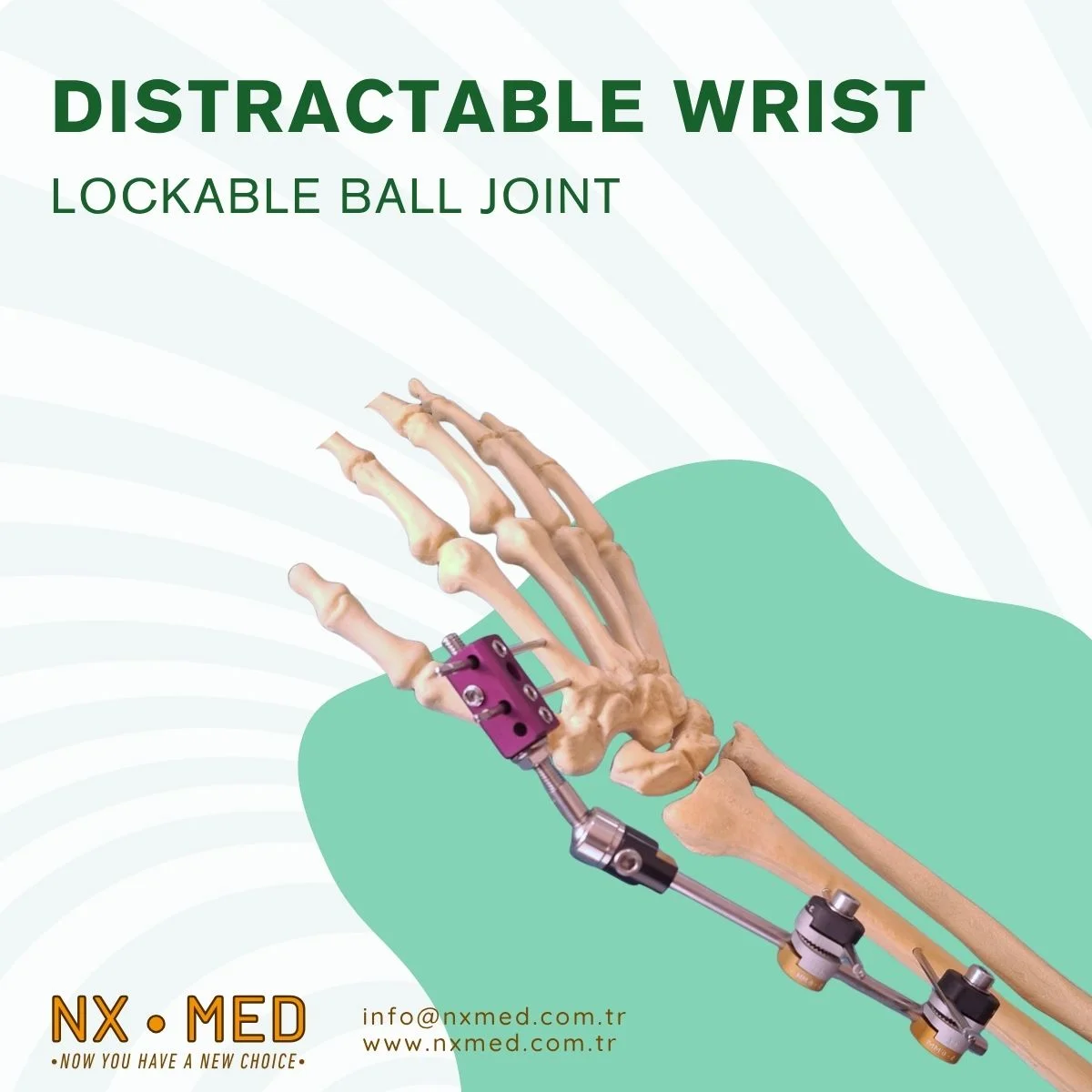

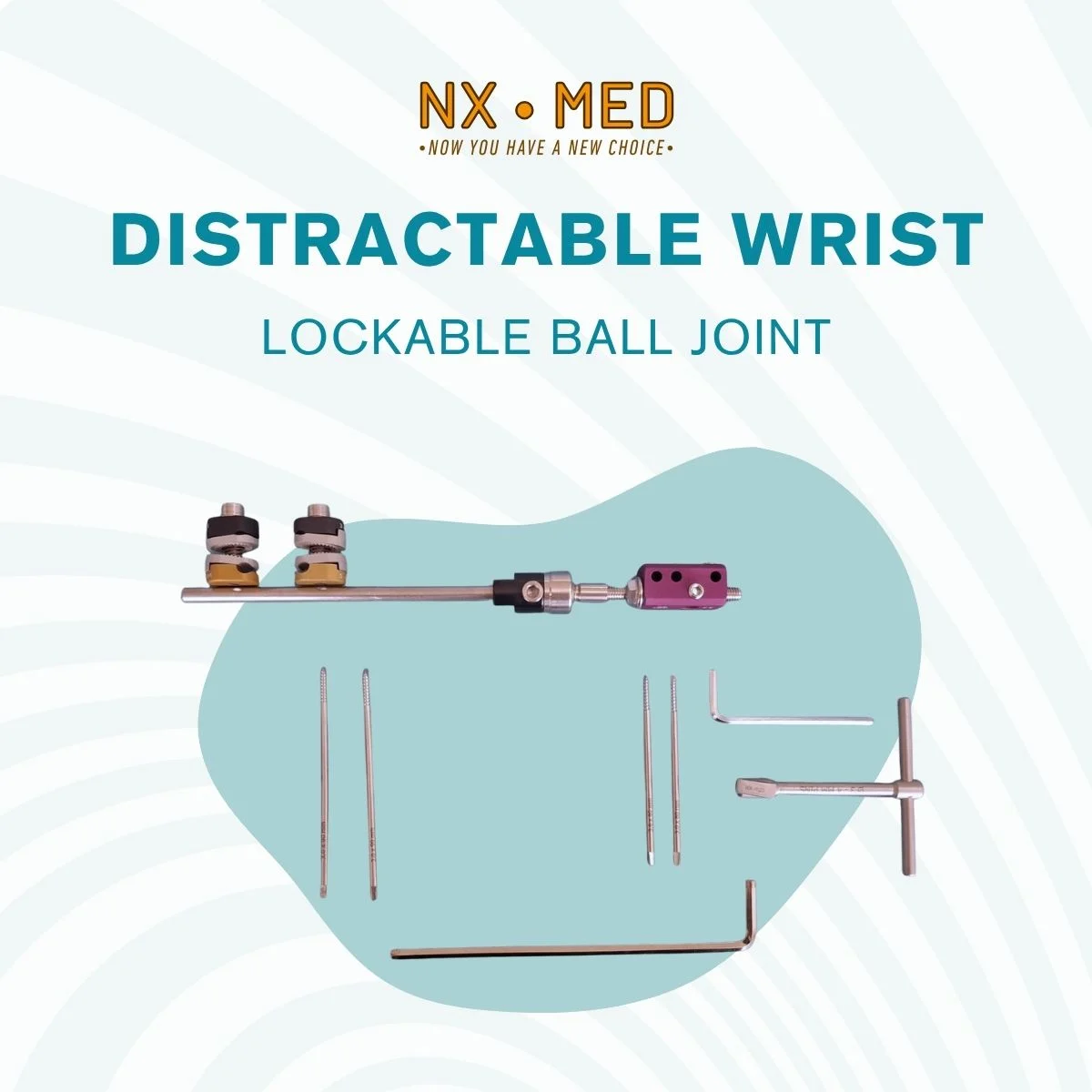

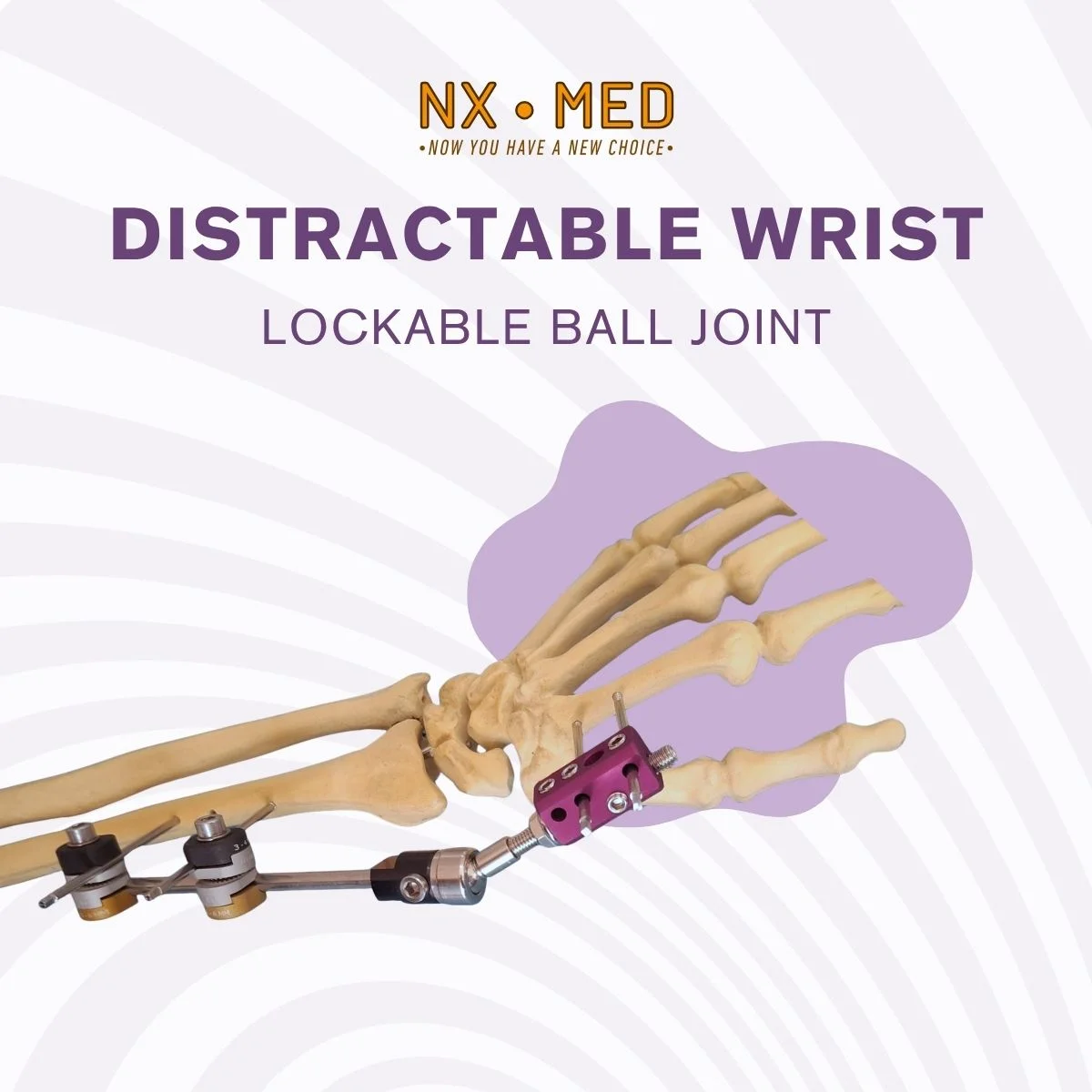

Distractable Wrist Fixator with Lockable Ball Joint

Featured small tubular fixator system for tratment of distal radius fractures.

Indications:

• Distal radius and/or ulna fractures

• Extra-articular distal radius and shaft fractures

• Unstable intra-articular distal radius fractures (with fragment fixation using additional implants)

Technical Features:

• Single ball-joint design enables easy assemble

• Lockable ball joint allows 360° rotation and secure positioning

• Tightening/loosening via 4.0 mm L-Allen key

• Angled clamps allow multiplanar Schanz screw placement

• Compatible with 3 mm and 4 mm Schanz screws

• Suitable for both extra-articular and transarticular external fixation techniques

• Size is 195 mm

Clinical Advantages:

• Multiplanar screw placement for anatomical adaptation

• Supports both gradual and acute deformity correction

• Distal distraction for ligamentotaxis

• Balanced design for stability and mobility

• Applicable for both pediatric and adult cases
