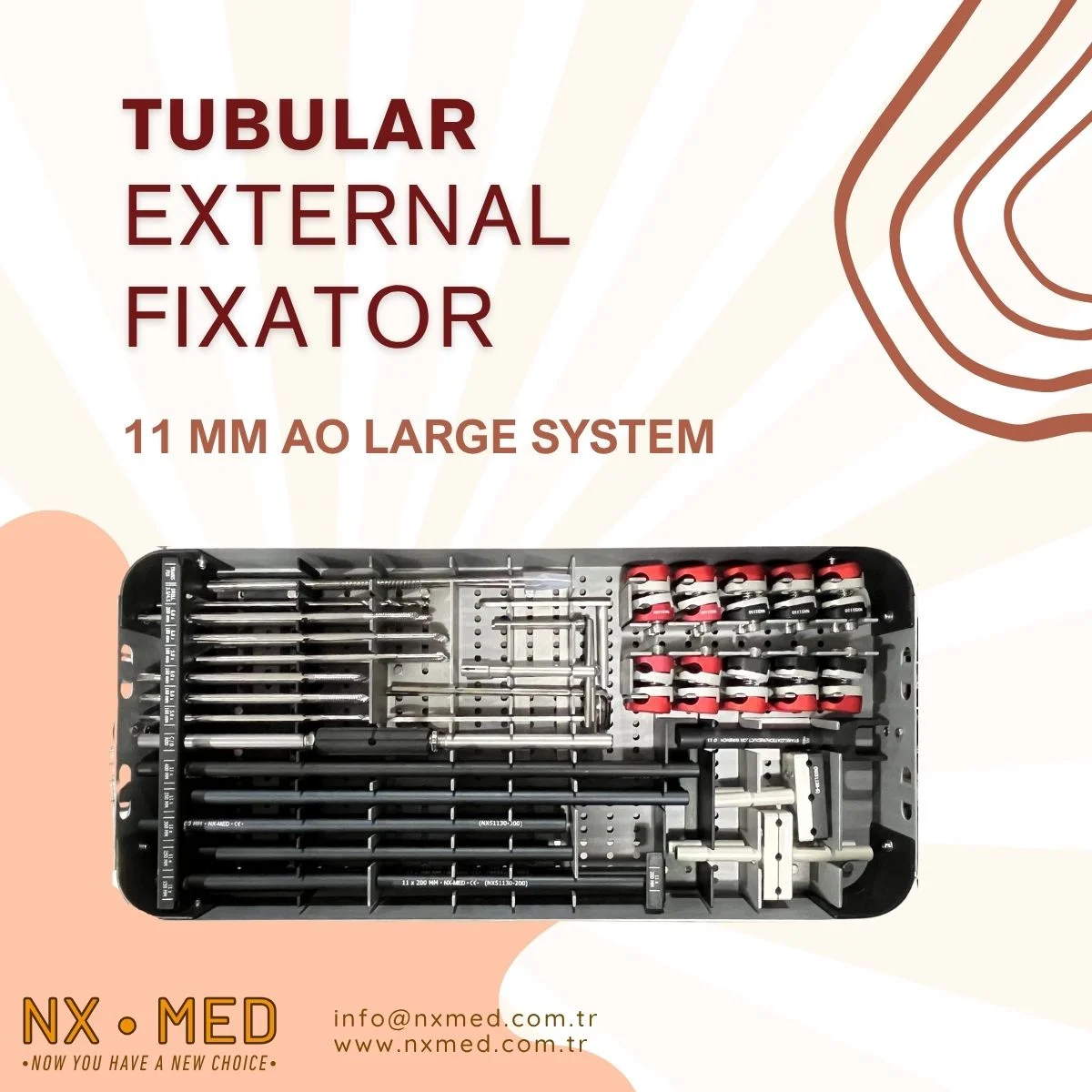

Tubular External Fixator AO 11 mm System
The AO-Type Tubular External Fixator (11 mm System) is a modular fixation system designed for the stabilization of complex fractures, particularly in the tibia, femur, and pelvis. Engineered for high mechanical strength and procedural flexibility, this system features 11 mm aluminium rods, compatible with a wide range of rod-pin clamps, rod-rod clamps, and connecting components.
Ideal for open fractures, polytrauma, and septic cases, the system supports delta, unilateral, and bilateral frame configurations. The 11 mm diameter provides enhanced load-bearing capacity for large bone segments, while the AO modular design ensures compatibility across medium and small systems.
Key Features:
11 mm tubular rods in aluminium or carbon fiber
Stable clamps and components (Aluminium)
Open and snap-on clamps for pin-to-rod and rod-to-rod connections
Compatible with self-tapping and self-drilling Schanz screws 5 mm and 6 mm diameters
Supports delta and multi-plane constructs
Designed for trauma stabilization procedures
| Component | Size |
|---|
| Rod-Rod Clamps | 11 mm / 11 mm |
|---|
| Rod-Pin Clamps | 11 mm / 5 - 6 mm |
|---|
| Rod 150 mm | 11 mm x 150 mm |
|---|
| Rod 200 mm | 11 mm x 200 mm |
|---|
| Rod 250 mm | 11 mm x 250 mm |
|---|
| Rod 300 mm | 11 mm x 300 mm |
|---|
| Rod 350 mm | 11 mm x 350 mm |
|---|
| Rod 400 mm | 11 mm x 400 mm |
|---|
| Multipin Clamp | With Single Rod |
|---|
| Multipin Clamp | With Double Rod |
|---|
5 mm x 160 mm
5 mm x 180 mm
6 mm x 160 mm
6 mm x 180 mm
6 mm x 200 mm
